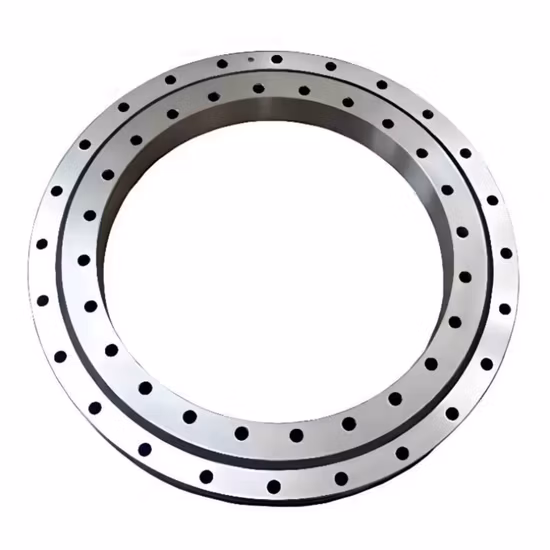

Lubricated Slewing Ring for Port Equipment Efficiency

Verified QR Traceability — Every customized slewing ring ships with scannable QR codes linking directly to the manufacturer’s official verification app for instant authenticity checks.

Technical Specifications

Application Suitability

Why Port Machinery Fails Before the Steel Yields

Sealing degradation causes more catastrophic downtime than structural overload.

Working near the coast in Dubai, I have seen countless crane turntables fail not because the steel cracked, but because high-salinity air breached compromised sealing strips. Once moisture enters the raceway, the grease emulsifies rapidly, leading to severe pitting on the gear teeth and rolling elements. Sourcing from a reliable port equipment slewing bearing supplier ensures that the sealing geometry matches the specific environmental exposure, preventing these hidden lubrication failures [NEED_CITE: common failure modes in marine slewing applications].

Matching Structural Configurations to Load Profiles

Selecting the correct internal geometry is critical for moment load stability. A single-row design handles standard radial and axial forces, while crossed roll or three-row roller configurations are engineered for complex, multi-directional tipping moments found in ship-to-shore cranes. A specialized port equipment slewing bearing supplier evaluates the exact load vectors to recommend the optimal rolling element arrangement.

Environmental Assault on Lubrication and Seals

The marine environment presents a relentless combination of salt spray, heavy shock loads, and slow oscillating movements. Standard contact seals often wear unevenly under these conditions, allowing abrasive sand and corrosive moisture to infiltrate the raceway. When the pre-lubricated grease emulsifies, the protective film breaks down, accelerating wear on the spacer and cage structures [NEED_CITE: impact of moisture ingress on slewing bearing grease performance].

Material and Sealing Selection for Marine Exposure

While standard bearing steel provides the necessary core hardness for high load capacity, alternative materials like stainless steel variants are available for highly corrosive zones. The sealing strip design must balance friction against contamination exclusion, often requiring multi-lip labyrinth configurations rather than simple rubber wipers to withstand high-pressure washdowns and salt accumulation.

The Hidden Cost of Dimensional Mismatches

A base envelope dimension match does not guarantee operational success. If the mounting hole pattern or gear module deviates slightly from the original equipment interface, it induces parasitic bending moments during rotation. According to ISO 15243 frameworks, this misalignment accelerates localized spalling and leads to catastrophic structural damage, voiding equipment warranties and causing unplanned downtime that far exceeds the component cost [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Engineering Alignment Over Catalog Matching

We address the frequent cross-reference errors where base numbers match but internal designs differ. For low-speed, high-load port equipment, we verify that the internal clearance and raceway hardness profile align with your specific tipping moments. Our batch traceability ensures every large-size ring is linked to its original heat treatment data. We review application parameters to prevent the installation of standard clearance rings where specialized preload arrangements are required.

Documentation & Authenticity

• Certificate of Conformity verifying the specific bearing steel grade and heat treatment批次 for large-diameter rings.
• Manufacturer batch and lot traceability linking the slewing ring to its original forging and machining records.
• Official app QR verification allowing dockside engineers to instantly confirm authenticity before installation.
• Dimensional and running accuracy inspection reports confirming gear module and raceway tolerances.
• Country-of-origin documentation supporting customs clearance for international port infrastructure projects.

Storage, Handling & Mounting

• Keep the customized slewing ring in its original wooden crate to protect the precision-machined gear teeth from dockside impacts.
• Store horizontally on a flat, level surface to prevent gravitational distortion of the large-diameter bearing steel rings.
• Inspect the specialized sealing strips for transit damage before applying external preservative oil to exposed metal surfaces.
• Use dedicated lifting eyes and spreader beams to avoid point-loading the thin cross-sections during crane pedestal mounting.
• Follow the manufacturer’s specific bolt-tightening sequence to ensure even load distribution across the customized mounting interface.

Initiating the Technical Review Process

To ensure structural compatibility, please provide the original equipment model, the exact envelope dimensions, and the maximum tipping moments experienced during operation. Detailing the environmental exposure, such as salt spray intensity and washdown frequency, allows our engineering team to specify the correct sealing strip and lubrication type. This data enables us to configure a customized solution that meets your exact operational tolerances.

Frequently Asked Questions

Q: How do we determine the exact slewing bearing type based on equipment load parameters?
A: We analyze the maximum axial loads, radial forces, and tipping moments generated during peak crane operations. By evaluating these vectors alongside the rotational speed and duty cycle, we determine whether a single-row, crossed roll, or three-row roller configuration provides the optimal load distribution and fatigue life for your specific port machinery.

Q: What are the common failure modes of slewing rings in port and marine environments?
A: The most frequent failures stem from sealing degradation allowing saltwater and abrasive dust to enter the raceway. This contamination causes the pre-lubricated grease to emulsify, leading to accelerated wear on the rolling elements and severe pitting on the gear teeth. Secondary failures include bolt hole elongation due to improper mounting tension or structural distortion from uneven pedestal surfaces.

Q: How do you manage customized dimensions and sealing options for non-standard applications?
A: We review your exact equipment interface drawings to design a slewing ring that matches the required mounting hole patterns and gear modules. For harsh marine environments, we can specify advanced multi-lip sealing strips and specialized corrosion-resistant coatings. Our engineering team validates these custom configurations against your operational load profiles before initiating the manufacturing process.

Q: What is the recommended maintenance cycle for heavy-load, low-speed slewing bearings?
A: Maintenance intervals depend heavily on the operational intensity and environmental exposure. While the initial pre-lubrication provides baseline protection, regular re-lubrication with compatible heavy-duty marine grease is essential to purge contaminants from the raceway. We recommend establishing a condition-monitoring schedule that checks for grease degradation, seal integrity, and gear backlash at regular operational milestones.

Q: How can we find a reliable replacement when the original OEM slewing ring is discontinued?
A: We perform a comprehensive cross-reference analysis that goes beyond basic envelope dimensions. By evaluating the internal geometry, raceway hardness, and gear specifications of the obsolete unit, we engineer a structurally equivalent replacement. This ensures the new slewing bearing integrates seamlessly with your existing drive mechanisms and mounting pedestals without requiring costly structural modifications.
