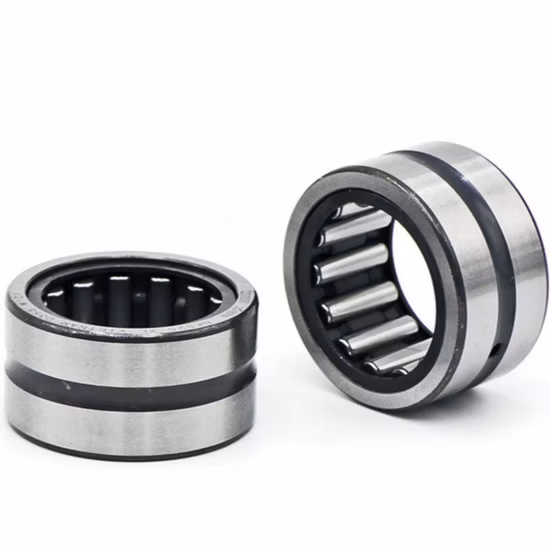

INA NKS30-XL Needle Bearing 30x45x22mm Genuine Authorized Supplier

Consolidated Multi-Brand Sourcing — Fulfill your INA, SKF, and FAG requirements on a single purchase order without juggling multiple vendor approvals and fragmented shipments.

Technical Specifications

Application Suitability

Why Cross-Referencing Fails Compact Needle Roller Bearings

Base numbers match, but internal geometries dictate survival.

Procurement teams often swap part numbers based solely on the 30x45x22mm envelope, ignoring the optimized raceway profiles required for high-load gearbox applications. When a standard needle cage is pressed into a high-vibration planetary stage, the rolling elements skew under dynamic radial loads. This misalignment causes localized stress concentrations that rapidly degrade the cage material [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Sourcing an authentic INA NKS30-XL needle roller bearing ensures the internal geometry matches the original equipment manufacturer’s thermal and kinetic calculations.

Engineering the X-life Advantage for High Radial Loads

The INA NKS30-XL needle roller bearing utilizes a premium X-life design that fundamentally alters the contact mechanics between the needles and the outer ring raceway. By refining the surface finish and optimizing the logarithmic profile of the rolling elements, edge stresses are drastically reduced during operation. This geometric refinement allows the bearing to sustain heavier radial loads within the same compact 30x45x22mm footprint, directly translating to noticeably extended L10 life in continuous-duty industrial gearboxes.

Navigating Thermal and Lubrication Demands in Gearboxes

Open-type needle bearings in enclosed gearboxes rely entirely on splash or forced oil circulation to manage friction heat and flush out wear debris. The absence of integral seals eliminates contact friction, allowing the INA NKS30-XL needle roller bearing to operate at higher limiting speeds without thermal runaway. However, this configuration demands rigorous filtration protocols; microscopic metallic particles suspended in the gear oil will score the optimized raceways if the system lacks adequate inline filtration [NEED_CITE: lubrication contamination impact on bearing fatigue life].

Decoding the NKS Series and XL Suffix

The "NKS" prefix designates a machined outer ring needle bearing, distinguishing it from the drawn-cup or outer-ring-less variants. This machined construction provides superior rigidity and precise outer diameter tolerances for press-fitting into gearbox housings. The "XL" suffix denotes the X-life premium tier, indicating upgraded metallurgy and raceway superfinishing. Unlike standard variants, the XL designation guarantees enhanced dynamic load ratings, making it non-interchangeable with basic commercial-grade equivalents that share the same physical dimensions but lack the fatigue-resistant internal profiling.

The Hidden Costs of Ignoring Suffix Accuracy

Substituting a standard needle bearing for an X-life variant to save upfront costs routinely triggers catastrophic gearbox seizures. When the cage fails prematurely due to unoptimized contact stresses, the loose needles migrate into the gear mesh, destroying expensive hardened gears and shafts. This collateral damage voids equipment warranties and forces multi-week production halts while sourcing replacement drivetrain components. Adhering to ISO 281 life calculations requires exact specification matching to avoid these compounding mechanical failures [NEED_CITE: ISO 281 dynamic load rating calculation methods].

Securing Genuine Traceability in the Supply Chain

Counterfeiters frequently clone the basic NKS30 designation while omitting the costly X-life internal machining. Our authorization network guarantees that every INA NKS30-XL needle roller bearing ships with verifiable batch traceability directly linked to the manufacturer’s production facilities. We cross-reference the exact cage design and raceway profile against your OEM blueprints, preventing the installation of visually identical but mechanically inferior substitutes that compromise critical drive systems.

Documentation & Authenticity

• Certificate of Conformity validating the X-life premium designation and manufacturing origin.
• Batch and lot traceability linking the specific 30x45x22mm bearing to factory heat treatment records.
• Official app QR verification for instant authenticity checks on the shop floor.
• Dimensional and running accuracy inspection report confirming machined outer ring tolerances.
• Material test report certifying bearing steel metallurgy for high-load gearbox applications.

Storage, Handling & Mounting Protocols

• Retain the vapor-phase corrosion inhibitor packaging until mounting to protect the open-type raceways.
• Verify housing bore tolerances before pressing the machined 45mm outer ring to prevent geometric distortion.
• Flush the gearbox housing thoroughly to remove machining swarf that could score the unsealed needle paths.
• Ensure the shaft journal is hardened and ground to specification, as this bearing lacks an inner ring.
• Confirm oil viscosity and flow rates match the high-speed requirements of the XL optimized geometry.

Initiating Technical Verification

Share your specific radial load profiles, operating temperatures, and gearbox oil circulation parameters so our engineering team can validate the dynamic load ratings. Providing the original equipment manufacturer’s assembly drawings allows us to verify the exact housing bore tolerances and shaft hardness requirements for this inner-ring-less design. This technical review ensures the selected specification aligns perfectly with your application’s fatigue life expectations.

Frequently Asked Questions

Q: How does the XL suffix affect the interchangeability of this needle bearing?
A: The XL suffix indicates X-life premium geometry with optimized raceway profiles and enhanced surface finishes. While it shares the 30x45x22mm physical envelope with standard variants, substituting a non-XL bearing compromises the dynamic load capacity and fatigue life. Always verify the XL designation during cross-referencing to maintain the original equipment manufacturer’s performance specifications.

Q: Why does this bearing require a hardened shaft journal?
A: As an NKS series bearing, it features a machined outer ring but operates directly on the shaft without an inner ring. The rolling needles contact the shaft surface directly, requiring the journal to be hardened and precision-ground to act as the inner raceway. Soft or unground shafts will rapidly wear, destroying the bearing and causing catastrophic assembly failure.

Q: How can I verify the authenticity of the delivered bearings?
A: Every genuine unit features a unique QR code on the packaging. Scanning this code with the manufacturer’s official mobile application instantly verifies the batch number, production date, and origin. This digital traceability prevents the installation of cloned products that lack the critical X-life internal geometry required for demanding industrial applications.
