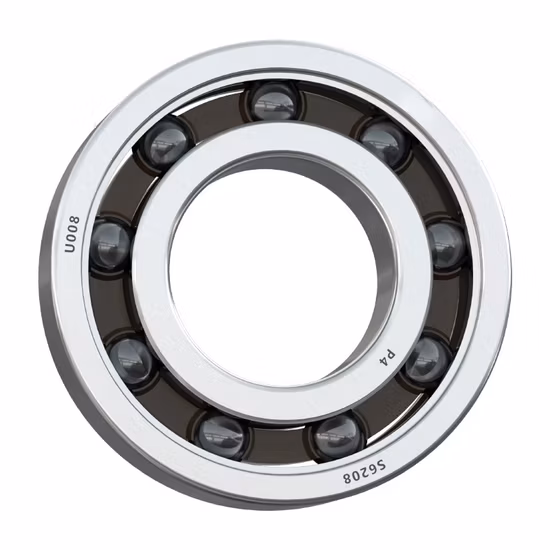

Advanced Low Friction Ceramic Bearing for Vacuum Semiconductor Applications

Verified via official apps — Every batch includes QR codes scannable through manufacturer applications to confirm authenticity and trace origin.

Technical Specifications

Application Suitability

Outgassing Risks That Force Buyers to Seek a Reliable vacuum semiconductor ceramic bearing supplier

Standard lubricants and steel materials vaporize instantly in high vacuum, destroying yield rates.

I once investigated a semiconductor fab where standard steel bearings were mistakenly installed in a vacuum chamber. The volatile compounds from the grease and the steel surface outgassed under vacuum, contaminating the entire processing cavity and forcing a complete line shutdown. Procurement teams quickly realize that avoiding such catastrophic contamination requires sourcing from a qualified vacuum semiconductor ceramic bearing supplier who understands that base designations mean nothing if the internal materials fail the vacuum test [NEED_CITE: outgassing failure modes in vacuum environments per ISO 15243].

Matching Material Options to Cleanroom Demands

Selecting the right material is the first line of defense against chamber contamination. While standard bearing steel fails rapidly in these environments, components are available in ceramic or specialized stainless steel variants to match specific outgassing thresholds. A competent vacuum semiconductor ceramic bearing supplier will review your exact vacuum level and thermal profile to ensure the selected material variant maintains structural integrity without releasing volatile compounds.

Navigating Thermal and Friction Challenges

Vacuum environments eliminate convective cooling, meaning friction heat builds up rapidly within the rolling elements. Operating temperatures can surge unexpectedly, demanding materials that maintain dimensional stability up to 800℃ without thermal binding. Furthermore, the absence of atmospheric pressure restricts lubrication options, making inherent low-friction properties critical to prevent seizure. Proper precision alignment ensures the rolling elements glide smoothly, minimizing heat generation during high-speed wafer transfer operations [NEED_CITE: thermal expansion effects on bearing clearance in vacuum].

Decoding Precision and Material Selection

The P4 and P5 precision classes guarantee the tight dimensional and running accuracy required for high-speed vacuum robotics. In semiconductor handling, even microscopic radial runout can cause wafer misalignment or vibration-induced micro-cracking. When evaluating material options, ceramics offer inherently low friction and exceptional thermal stability, whereas specialized stainless variants might be chosen for specific magnetic or structural requirements. The selection ultimately depends on balancing the extreme temperature resistance of ceramics against the specific load profiles of the vacuum chamber mechanism.

The Hidden Costs of Ignoring Vacuum Specifications

Installing a bearing that merely matches the physical dimensions but lacks high vacuum compatibility leads to rapid outgassing and chamber contamination. This results in scrapped semiconductor batches, unplanned downtime, and costly chamber decontamination procedures. According to failure analysis frameworks, using components outside their designated environmental limits voids equipment warranties and accelerates degradation [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The financial impact of a single contaminated vacuum run far exceeds the initial procurement savings.

Why Our Technical Review Prevents Cross-Reference Errors

We provide authorized coverage across major brands, allowing mixed-brand requirements to be fulfilled in a single order. Our cross-brand interchange process matches clearance, cage material, and precision, rather than just relying on a base designation that might overlook vacuum-specific suffixes. Every shipment includes batch traceability to the manufacturer, verified through official QR applications to eliminate the risk of counterfeit ceramics. We conduct application-based selection reviews covering load, speed, and temperature to ensure the chosen variant survives the vacuum environment.

Documentation & Authenticity

• Certificate of Conformity confirming high vacuum material compliance for semiconductor use.
• Batch and lot traceability linking each unit to the original manufacturer production run.
• Official app QR verification to instantly validate authenticity and eliminate counterfeit risks.
• Material test report verifying the ceramic or stainless steel variant composition.
• Dimensional and running accuracy inspection report confirming P4/P5 precision tolerances.
• Country-of-origin documentation required for international semiconductor supply chain compliance.

Storage, Handling & Mounting

• Keep units in original vacuum-sealed packaging until mounting to prevent moisture absorption in the ceramic material.
• Use certified cleanroom gloves during handling to avoid transferring skin oils that cause outgassing.
• Store in a temperature-controlled, low-humidity environment to protect the P4/P5 precision surfaces.
• Avoid carbon steel tools during installation to prevent cross-contamination of the ceramic components.
• Follow strict cleanroom mounting protocols to maintain the high vacuum compatibility of the assembly.

Defining Your Exact Equipment Parameters

To ensure the selected component survives your specific vacuum environment, please provide the exact equipment model, installation space constraints, and operational load profiles. Our engineering team will evaluate the radial and axial forces alongside the thermal dynamics to determine the precise configuration required. Detailing the specific vacuum level and temperature extremes allows us to recommend the optimal material variant and precision class for your application.

Frequently Asked Questions

Q: How do I determine the exact bearing designation for my semiconductor equipment?
A: Provide your equipment model, installation space dimensions, and specific operational parameters including load, speed, and vacuum level. Our engineering team will analyze these factors to determine the exact configuration, ensuring the selected component meets the stringent outgassing and precision requirements of your specific semiconductor manufacturing process without relying on guesswork.

Q: Why do standard steel bearings fail in high vacuum environments?
A: Standard steel bearings rely on lubricants and surface treatments that vaporize under high vacuum, causing severe outgassing that contaminates sensitive semiconductor processes. Additionally, the lack of convective cooling in a vacuum leads to rapid heat buildup, causing standard steel to experience thermal binding and premature seizure, ultimately resulting in catastrophic equipment failure and scrapped production batches.

Q: What are the material selection criteria for vacuum applications?
A: Material selection depends on balancing thermal stability, friction, and specific process requirements. Ceramic variants are typically chosen for their inherent low friction, exceptional temperature resistance up to 800℃, and minimal outgassing. Specialized stainless steel variants may be considered for specific structural or magnetic constraints, provided they meet the strict vacuum compatibility and cleanliness standards required for semiconductor fabrication.

Q: What traceability is required for semiconductor fab components?
A: Semiconductor fabs require strict documentation to prevent counterfeit parts from entering critical vacuum systems. We provide a Certificate of Conformity, material test reports, and dimensional inspection reports confirming P4/P5 compliance. Furthermore, every unit features batch traceability and QR codes verifiable through official manufacturer applications, ensuring complete transparency and authenticity from the production facility to your cleanroom.
