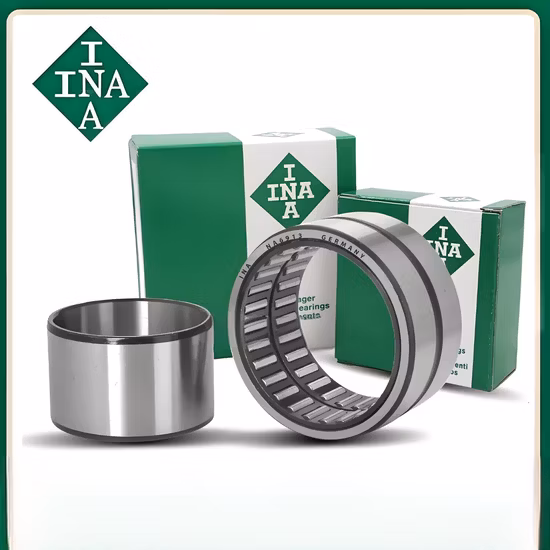

INA NKS50 Needle Bearing 50x65x22mm Authorized Supplier

Verifiable Factory Batches — Every INA NKS50 needle roller bearing ships with original lot records to ensure complete supply chain transparency.

Technical Specifications

Note: The specific meaning of the NKS suffix remains unverified in standard public catalogs and requires direct manufacturer confirmation for internal design nuances.

Application Suitability

Why Suffix Blindness Wrecks Gearbox Internals Before the INA NKS50 needle roller bearing Even Fails

Matching the base number is never enough when internal clearance and cage design dictate operational survival.

Procurement engineers often focus solely on the base designation, overlooking how suffix variations dictate internal geometry and cage materials. In heavy-duty gearboxes, substituting a standard cage for one designed to handle high vibration leads to rapid structural fatigue. We have seen countless field failures where a cross-reference matched the outer dimensions perfectly, but the internal design variant caused thermal binding under continuous load. [NEED_CITE: rolling bearing failure mode classification per ISO 15243]

Matching the INA NKS50 needle roller bearing to Demanding Drivetrains

Selecting the correct open-type needle roller bearing requires balancing compact radial space with high load capacity. The INA NKS50 needle roller bearing excels in tight gearbox housings where shaft rigidity is paramount. Our technical team reviews your specific load profiles to ensure the selected variant handles the exact radial forces without premature raceway spalling.

Navigating Thermal and Lubrication Challenges in Compact Housings

Radial loads in industrial gearboxes generate significant friction heat, directly impacting the required internal clearance class. An open-type design relies entirely on the host system’s oil bath or circulation lubrication to prevent roller skidding and cage wear. When operating temperatures fluctuate, selecting the correct clearance prevents the rollers from binding against the raceways. Inadequate filtration in the gearbox oil will rapidly score the needle profiles, making contamination control just as critical as the bearing selection itself. [NEED_CITE: lubrication and contamination impact on bearing life per ISO 281]

Decoding the 50x65x22mm Geometry and Open Architecture

The 50 mm bore, 65 mm outside diameter, and 22 mm width provide a high load-carrying cross-section ideal for compact transmission layouts. Utilizing high-carbon bearing steel, the raceways and rollers achieve the necessary surface hardness to resist indentations from debris. The open architecture eliminates seal friction, allowing the component to run cooler at higher speeds while relying on the gearbox’s internal oil flow. This configuration demands that the mating shaft journal be ground to precise tolerances and hardened adequately to serve as the inner raceway.

The Hidden Costs of Overlooking Internal Design Variants

Deploying a component with incorrect internal geometry or inadequate cage strength results in unplanned downtime and catastrophic damage to surrounding gears. When the cage fractures under high vibration, the rollers skew and destroy the shaft journal. Such secondary damage voids equipment warranties and extends repair timelines far beyond a simple component swap. Proper alignment of internal design parameters prevents these cascading mechanical failures. [NEED_CITE: secondary damage mechanisms in rolling element bearings]

Securing Your Supply Chain Against Counterfeit and Mismatched Parts

Sourcing mixed-brand requirements through a single authorized channel eliminates the coordination delays of dealing with multiple vendors. We strictly align cross-references based on clearance, cage material, and precision suffixes, preventing the dangerous assumption that a matching base number guarantees interchangeability. Every shipment includes batch traceability to the manufacturer, verified via official brand applications to eliminate cloned QR codes. Our application-based selection review catches mismatched internal designs before the parts ever reach your assembly floor.

Documentation & Authenticity

• Certificate of Conformity confirming original manufacturer production standards.
• Batch and lot traceability linking directly to the factory dispatch records.
• QR verification enabled through official brand apps to reject cloned codes.
• Material test report validating the bearing steel chemical composition.
• Dimensional and running accuracy inspection report verifying the 22 mm width tolerance.
• Country-of-origin documentation for seamless customs clearance.

Storage, Handling & Mounting

• Store the open-type bearing in its original VCI packaging to prevent surface corrosion on the 50 mm bore.
• Handle the bare needle rollers with clean lint-free gloves to avoid acidic skin contact.
• Ensure the mating shaft journal is hardened and ground to precise tolerances before mounting.
• Flush the gearbox housing thoroughly to remove metallic debris before introducing the 65 mm OD component.
• Verify the system oil filtration rating to protect the unsealed rolling elements from abrasive particles.

Engineering Review and Technical Validation

To ensure optimal performance, share your radial load calculations, operational speeds, and steady-state temperatures for a comprehensive L10 life review. Providing the specific OEM equipment number allows our engineering team to perform a rigorous cross-reference check against internal design variants. Detail your gearbox lubrication specifications so we can confirm the open-type architecture aligns with your maintenance intervals.

Frequently Asked Questions

Q: How can we verify the authenticity and batch origin of the received parts?
A: Each unit features a traceable batch code that can be scanned using the manufacturer’s official mobile application. This digital verification confirms the production facility, original dispatch date, and authentic material certifications, effectively eliminating the risk of installing counterfeit components with soft inner rings or cloned packaging into your critical gearboxes.

Q: What internal parameters must align during a cross-reference substitution?
A: Beyond matching the 50x65x22mm base dimensions, engineers must verify the exact internal clearance class, cage material, and roller profile modifications. Substituting a standard clearance for a C3 variant in high-temperature gearboxes causes thermal binding, while ignoring cage design differences leads to rapid fatigue under high-vibration operating conditions.

Q: What are the shaft requirements for this inner-ring-less configuration?
A: The mating shaft journal must act as the inner raceway, requiring induction hardening to adequate depth and precision grinding to achieve the necessary surface finish. Any deviations in shaft roundness or surface roughness will directly transfer to the needle rollers, causing premature wear and elevated operating temperatures in the transmission assembly.

Q: How should lubrication be managed for this open-type design?
A: The open architecture relies entirely on the host equipment’s circulating oil or splash lubrication system. Maintenance teams must ensure the gearbox oil viscosity matches the operating temperature range and that filtration systems are actively removing particulate contamination to prevent abrasive scoring on the exposed rolling elements and raceways.
